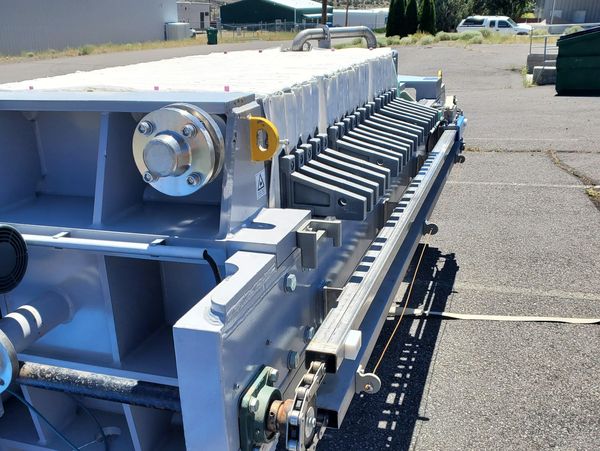

New 132ft3 (3.73m³) High-Pressure Automated Membrane Filter Press
- 1,200 x 1,200 filter press w/multiple plate shifting
- 1.7MPa feed pressure
- 2.0MPa squeeze pressure
- 388 chambers
- 3.75m3 meter capacity
- Allen Bradley controls
- Womack Hydraulic Power Unit (PLC and HMI)
New 16ft³ (0.45m) High-Pressure Automatic Membrane Filter presses for sale
- 800 x 800 filter press w/ single plate shifting
- With wash system and bomb bay doors.
- No Cake blow
- plate shaker 1.7MPa feed pressure
- 2.0MPa squeeze pressure
- 30 chambers
- Allen Bradley controls (PLC and HMI)
- Womack Hydraulic Power Unit
New 18ft³ medium-Pressure Automatic Recess Chamber Filter Press
- 16MPa Hydraulic Pressure
- Filtration Pressure 1 MPa
- Includes HPU and Control Panel
- 18ft³ Capacity Variable
- Medium-Pressure
Previously Sold Unused Automated 15.5 m³ High-Pressure Membrane Filter Press
15.5m3 Capacity Variable Feed Pressure.
Slurry Feed Pump with High-Pressure Gland Water Pump.
Two-way feed and core blow capable.
High-Pressure Membrane Squeeze System, Pump, And Manifold.
Womack High-Pressure Hydraulic Pump & Pipework.
Pneumatic Knife Gate Valves.
Single Plate Indexing Wash Rack Included.
Equipment Guards.
LV Control Panel with Allen Bradley HMO
HV VFD Drives for Ancillary and Feed pumps.
Hydraulic Bomb Bay doors.
Overhead crane frame with 1-tonne electric lift (for plate servicing without man access into plate arrangement).
Include new replacement filter cloth/plates where applicable.
OEM installation support, parts, and servicing. Operator Training can be included.
Compressor not included.
Flocculant system/mud tank/mixing not included.
Buyer to provide Foundation/Building/Structure, pipework, assembly, and installation.
Available immediately.
New DYNAMIC DSW1370-1 - 54” x 34’ Single Fine Material Washer
- Fabricated tub assembly, including rising current manifold with water inlet and drain
- Heavy duty shaft with fully welded spiral.
- Replaceable ni-hard steel wear shoes
- Hardware for mounting either urethane flight shoe set below (included)
- High reduction gearbox
- Grease lubricated
New DYNAMIC DSW1370-1 - 54” x 34’ Single Fine Material Washer
- Fabricated tub assembly, including rising current manifold with water inlet and drain
- Heavy duty shaft with fully welded spiral.
- Replaceable ni-hard steel wear shoes
- Hardware for mounting either urethane flight shoe set below (included)
- High reduction gearbox
- Grease lubricated lower outboard bearing with replaceable rubber seals and stainless wear sleeve.
- Water requirements for 150M split – 925 GPM
- Feed box, steel support legs, product discharge chute, and adjustable weir
- Feed Size: -3/8” (-10mm) material
- Capacity 275 TPH (250 MTPH), depending on the application
- Standard operating angle 18 degrees
- Drive package: v-belt drive with drive sheave, motor base, 40HP, 1800 rpm, TEFC, 3/60/460V motor
- Manufactured in the UNITED KINGDOM
- Two (2) Copies, Parts & Operation Manual
- Located in Chattanooga, TN
$99,000
2", 4", 6", 8", and 10" TPH Slurry High Pressure (315PSI) Knife Gate slurry valves with pneumatic Actuators
with companion flanges, proximity switches and solenoid control valve.
Available pumps:
(3) 4/3 rubber-lined slurry
6/4 rubber-lined slurry
8/6 chrome-lined slurry
6/4 high head/chrome slurry
(2) 14/6 Metal Froth Pump
(1) High Volume/Low Head 4/3 chrome-lined
(4) High Volume/Low Head 6/4 chrome-lined
(5)High Volume/Low Head 8/6 chrome-lined
(1) 3/2 chrome-lined slurry
(3) 4/3 chrome-lined slurry
(5) 6/4 chrome-lined slurry
(2) 8/6 chrome-lined slurry
